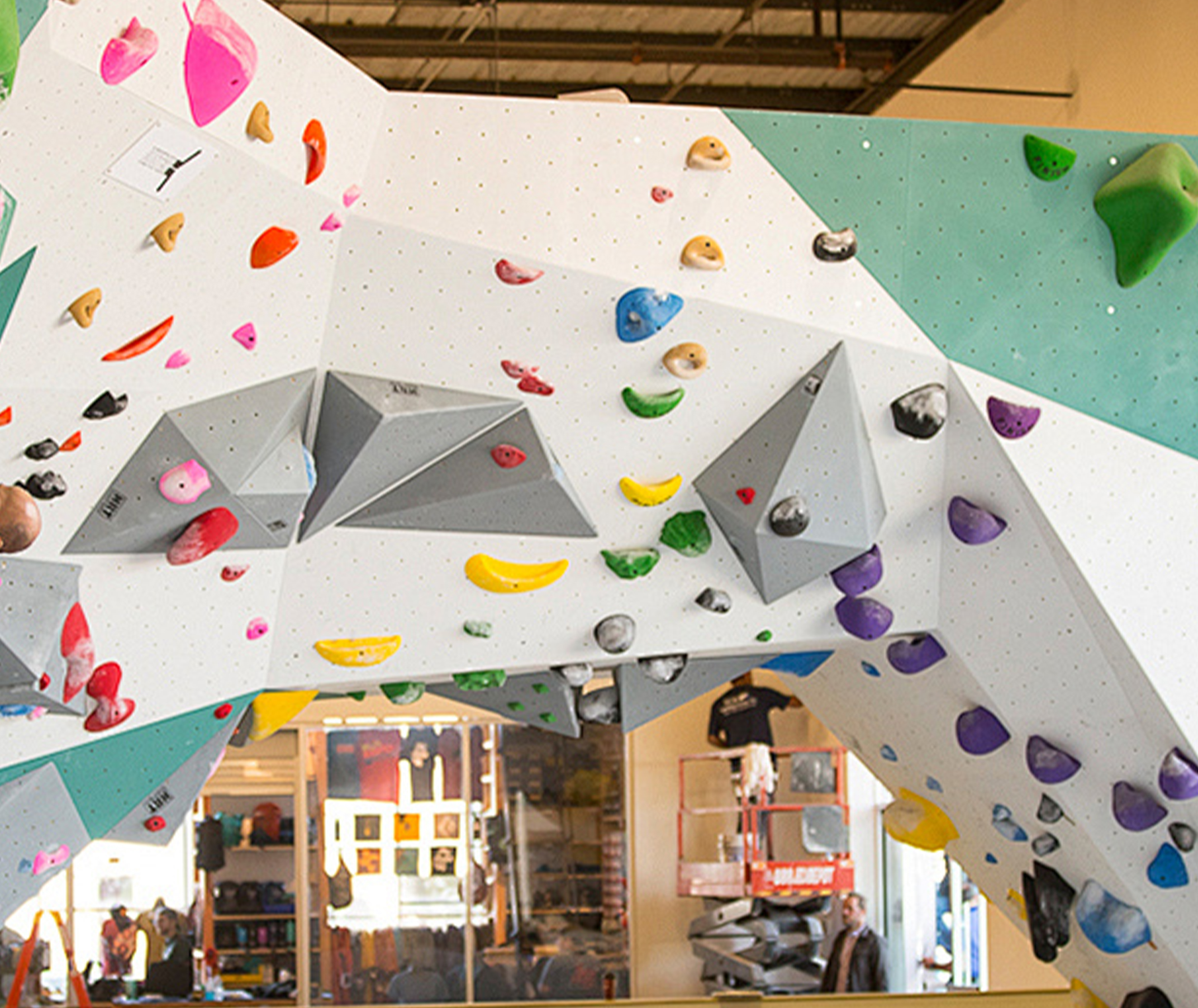

1. What Are Indoor Climbing Wall Supports?

Indoor climbing wall supports are engineered structural elements that carry the loads generated by

climbers, climbing holds, safety equipment, and the wall panels themselves. They connect climbing surfaces to existing

building structures or form free‑standing frames that can safely absorb vertical and horizontal forces during climbing activity.

A complete climbing wall support system typically includes:

• Primary structural frame (steel, timber, or hybrid)
• Secondary framing (studs, joists, or purlins)
• Panel attachment grid for climbing wall panels and volumes
• Anchors and fixings to floor, walls, and ceiling
• Bracing elements for lateral stability
• Integrated or adjacent fall‑zone and matting interfaces

Properly designed indoor climbing wall supports distribute loads to the building structure, maintain panel alignment,

and resist deformation so that climbers experience a solid, predictable climbing surface suitable for both training

and recreational use.

2. Typical Applications for Indoor Climbing Wall Supports

Indoor climbing wall support systems are used in a wide range of environments where both training and recreational play

are important. Key application areas include:

• Commercial climbing gyms – high‑traffic bouldering walls and roped walls designed for intensive training and group sessions.
• Home climbing walls and garages – compact, customizable systems for personal training and family recreation.
• Schools, colleges, and universities – multi‑purpose walls for physical education, clubs, and team training.
• Recreation centers and community facilities – accessible climbing structures for beginners and casual users.
• Fitness centers and sports clubs – cross‑training spaces with climbing walls integrated into larger gyms.
• Indoor playgrounds and family entertainment centers – colorful, themed climbing zones designed mainly for recreational play.
• Military, fire, and rescue training facilities – performance‑focused climbing support systems with specific load and durability requirements.

3. Key Benefits of Quality Indoor Climbing Wall Supports

High‑quality indoor climbing wall supports offer a range of advantages for operators, climbers, and facility managers.

For both training and recreational play, the benefits center on safety, performance, and flexibility.

3.1 Safety and Structural Integrity

• Load‑bearing reliability – engineered to support dynamic loads from falls, jumps, and powerful moves.
• Resistance to deformation – reduces flexing and vibration, maintaining tight, secure climbing surfaces.
• Compliance with standards – facilitates meeting relevant climbing wall and building safety codes.
• Secure anchorage – correct connection to floors, walls, and ceilings minimizes risk of structural failure.

3.2 Performance for Training

• Precise wall angles – support systems maintain accurate overhangs, slabs, and roofs for structured training.
• Consistent surface feel – rigid supports result in a stable feel ideal for strength and technique training.
• Easy route resetting – integrated T‑nut grids and panel supports allow frequent route changes.
• Expandable design – modular supports make it easier to extend or modify training areas over time.

3.3 Experience for Recreational Play

• Comfortable fall zones – supports are planned together with matting and flooring for safe landings.
• Appropriate heights and angles – recreational users can enjoy climbing features matched to their ability.
• Visual variety – support structures can carry diverse panel shapes, volumes, and decorative elements.
• Low maintenance – well‑designed supports reduce ongoing repair costs in high‑use recreational facilities.

3.4 Operational and Commercial Advantages

• Efficient use of floor space – vertical structures maximize climbing area per square meter.
• Long service life – durable materials minimize replacement and downtime.
• Flexible programming – the same structure can host youth programs, adult training, and events.
• Attractive investment profile – predictable structural performance supports long‑term business planning.

4. Main Types of Indoor Climbing Wall Support Systems

Indoor climbing wall supports can be categorized by how they interact with the building structure and by their function

within a climbing facility. Many installations use a combination of support types to create varied terrain.

4.1 Wall‑Mounted Support Systems

Wall‑mounted support systems are fixed directly to existing structural walls using anchors, brackets, and secondary framing.

• Advantages: Efficient use of space, simple layout, cost‑effective when suitable structural walls are available.
• Best for: Home walls, school gyms, low to medium‑height training and recreational walls.
• Limitations: Dependent on base wall strength, limited angle adjustment if the structure cannot handle large overhangs.

4.2 Free‑Standing Support Frames

Free‑standing frames are independent structures that do not rely on existing walls for primary support. They are anchored to

the floor and sometimes braced to the ceiling.

• Advantages: High flexibility in shape and angles, can be installed in open spaces, ideal for bouldering islands or towers.
• Best for: Commercial gyms, recreation centers, and any facility requiring complex or 3D climbing geometry.
• Limitations: Requires more material and engineering, larger footprint for stability.

4.3 Ceiling‑Suspended and Hybrid Systems

Some climbing wall supports partially hang from structural ceiling elements, reducing the load on floor anchors and creating

dramatic overhangs or roofs.

• Advantages: Enables steep overhangs, roofs, and unique shapes; can improve load distribution.
• Best for: Advanced training sections, competition walls, and feature roofs in commercial gyms.
• Limitations: Requires strong overhead structure and detailed engineering coordination.

4.4 Adjustable Training Wall Supports

Adjustable support systems allow the wall angle to change, enabling different training intensities on the same footprint.

• Features: Hinged bases, telescopic supports, mechanical or motorized adjustment.
• Benefits: Highly versatile for home training, team training, and performance testing.
• Considerations: Moving components must be carefully designed, with safety locks and clear adjustment procedures.

4.5 Kid‑Focused and Recreational Support Structures

Support systems for children and entry‑level recreational users often prioritize lower heights and integrated safety zones.

• Typical characteristics: Lower overall height, generous fall‑zones, simple wall angles, colorful panel shapes.
• Usage: Indoor playgrounds, schools, family entertainment centers.
• Structural focus: Robust yet compact supports that withstand frequent low‑level impacts and large group use.

5. Common Materials Used in Indoor Climbing Wall Supports

The selection of materials for indoor climbing wall supports affects strength, cost, installation methods, and long‑term

maintenance. The main categories are steel, timber, and hybrid systems.

5.1 Steel Support Structures

Steel is widely used for commercial‑grade indoor climbing wall support systems due to its high strength and durability.

• Typical elements: H‑beams, RHS/SHS box sections, angle sections, and steel plates with welded or bolted connections.
• Advantages: High load capacity, slim profiles, long spans, predictable engineering properties.
• Surface finishing: Galvanizing, powder coating, or paint systems protect against corrosion and wear.
• Common uses: Large commercial gyms, complex overhangs, competition walls, and free‑standing structures.

5.2 Timber and Engineered Wood Supports

Timber and engineered wood products are often used for smaller installations or as secondary framing in larger structures.

• Materials: Solid timber studs, laminated veneer lumber (LVL), glulam beams, and plywood sheathing.
• Advantages: Easy to work with on site, good for DIY or small projects, naturally compatible with wood climbing panels.
• Limitations: Lower long‑span capacity compared to steel, requires moisture control and appropriate grading.
• Applications: Home climbing walls, school walls, and sections of hybrid support systems.

5.3 Hybrid Steel–Timber Systems

Many indoor climbing wall supports use a hybrid structure: steel as the primary frame and timber as secondary framing for panels.

• Benefits: Combines strength of steel with the flexibility and cost‑effectiveness of timber.
• Use case: Complex wall shapes where steel provides the main geometry and timber delivers precise panel support.
• Construction: Steel columns and beams with attached timber battens, joists, or studs forming the panel grid.

5.4 Fasteners and Anchors

Fasteners and anchors are critical components of the support system and must be selected for load capacity and compatibility.

• Fasteners: Structural screws, bolts, nuts, and washers rated for the expected loads.
• Anchors: Mechanical anchors, chemical anchors, and through‑bolts for concrete and masonry.
• Considerations: Edge distances, embedment depths, base material strength, and manufacturer load ratings.

6. Design Considerations for Training vs. Recreational Use

Indoor climbing wall supports must be designed with the intended use in mind. A wall built primarily for advanced training

has different structural and geometric requirements compared to a wall built for casual recreational play.

6.1 Height and Fall‑Zone Requirements

• Bouldering walls: Typically up to 4.5–5.0 m high, with thick safety matting; supports must accommodate large lateral forces from falls.
• Top‑rope and lead walls: Heights can range from 7 m to over 15 m; support structures must carry significant vertical and dynamic rope loads.
• Kid and beginner walls: Often kept under 3 m with generous crash mat coverage.

6.2 Angle Variety and Training Objectives

• Steep overhangs (20–60°): Require robust supports and bracing due to higher lever arms and dynamic loads.
• Vertical and slab sections: Lower structural demand but still need secure attachment and stability.
• Adjustable angle walls: Support design includes moving parts, pivot points, and safe locking mechanisms.

6.3 Load Path and Building Integration

The design of climbing wall supports must ensure that loads are transferred safely into the building structure.

• Assessment of base structure – floor slabs, walls, and roof elements are checked for capacity.
• Connection detailing – brackets, plates, and anchors are sized for combined vertical and horizontal forces.
• Service coordination – ductwork, lighting, sprinklers, and other services are integrated around the support frames.

6.4 User Demographics and Route Setting

• Training‑focused facilities: Support systems may prioritize overhangs, campus‑style features, and dense T‑nut grids.
• Recreational facilities: Supports often carry visually appealing panels with moderate angles and large holds.
• Mixed‑use gyms: Structural design allows both high‑intensity training zones and friendly beginner areas on the same frame.

7. Safety Standards and Regulatory Considerations

Indoor climbing wall supports must be designed, installed, and maintained according to recognized safety standards and

building regulations. Requirements vary by country and region, but common themes include:

• Structural safety – adherence to applicable building codes for live loads, impact loads, and seismic conditions.
• Climbing wall specific standards – use of standards that define safety criteria for artificial climbing structures, holds, and fall zones.
• Fire and occupancy codes – maintaining egress routes, fire‑resistant finishes, and clearances.
• Accessibility standards – providing accessible circulation and viewing areas where required.

Because safety requirements evolve over time, indoor climbing wall supports should always be planned with current local

regulations and recognized industry practices in mind.

8. Example Specification Tables for Indoor Climbing Wall Supports

The following specification tables provide typical parameter ranges for indoor climbing wall supports used in training and

recreational environments. Values are indicative only and should always be confirmed through project‑specific engineering.

8.1 General System Parameters

8.2 Structural Frame Components

8.3 Panel and Hold Interface

8.4 Safety and Fall‑Zone Parameters

9. Installation Guidelines for Indoor Climbing Wall Supports

Proper installation of indoor climbing wall supports is essential for safety and long‑term performance. While every project

is unique, typical steps include:

9.1 Pre‑Installation Planning

• Review architectural drawings, building structure, and available space.
• Confirm wall heights, angles, and intended user groups (training vs. recreational).
• Coordinate with engineers on load paths, anchors, and reinforcement needs.
• Plan fall‑zones, mats, and circulation routes around the climbing area.

9.2 Preparing the Base Structure

• Inspect floors, walls, and ceilings for cracks, voids, or weak areas.
• Verify concrete grade and thickness where anchors will be placed.
• Mark column and base plate locations with respect to fall‑zones and clearances.

9.3 Frame Assembly and Erection

• Assemble steel or timber frames according to design drawings and manufacturer instructions.
• Use calibrated tools to torque bolts and anchors to specified values.
• Install bracing members progressively to stabilize the frame during construction.
• Check plumb, level, and alignment of all primary structural elements.

9.4 Panel and Interface Installation

• Fix secondary framing members at specified spacing to form the panel grid.
• Install climbing panels, maintaining consistent joints and surface flatness.
• Install T‑nuts and test sample holds for secure attachment.
• Integrate volumes, features, and other 3D elements only after frame verification.

9.5 Inspection and Commissioning

• Conduct structural inspection of the support system, anchors, and connections.
• Verify that fall‑zones and matting are correctly positioned and secure.
• Check clearances around the wall for safe movement of climbers and belayers.
• Document as‑built layout, materials, and design capacities for future reference.

10. Maintenance and Inspection of Climbing Wall Supports

Ongoing maintenance of indoor climbing wall supports helps preserve safety, performance, and appearance over the life of the facility.

10.1 Regular Visual Inspections

• Inspect steel members for corrosion, dents, or deformation.
• Check timber elements for cracking, moisture damage, or splitting.
• Look for loose fasteners, missing bolts, and signs of movement at connections.
• Examine wall panels for delamination, soft spots, or excessive flex.

10.2 Scheduled Structural Reviews

• Perform more detailed inspections at regular intervals based on usage intensity.
• Review anchorage points, ceiling connections, and bracing members.
• Engage qualified professionals for structural assessment where required.

10.3 Cleaning and Environmental Control

• Maintain dry, well‑ventilated conditions to protect timber elements.
• Control chalk dust through cleaning routines, as it can conceal small defects.
• Check for water leaks, condensation, or environmental factors that could degrade materials.

10.4 Modifications and Upgrades

• When adding new panels, overhangs, or features, verify support capacity before installation.
• Document changes in layout or additional loads introduced to the system.
• Consider upgrading anchors or bracing when increasing training intensity or user capacity.

11. How to Choose Indoor Climbing Wall Supports

Selecting the most suitable indoor climbing wall supports depends on project goals, budget, building constraints, and

the balance between training and recreational use.

11.1 Clarify Primary Use

• Training‑dominated facilities: Prioritize adjustable angles, steep sections, and robust structural capacity.
• Recreational or family‑oriented facilities: Focus on moderate angles, visual appeal, and user‑friendly heights.
• Mixed‑use environments: Combine sections of each, using a flexible support framework.

11.2 Evaluate Building Conditions

• Measure ceiling height and available floor area for bouldering and roped sections.
• Assess wall and floor strength for direct anchoring or decide on free‑standing designs.
• Identify obstacles such as doors, windows, services, and emergency exits.

11.3 Compare Structural Options

• Consider wall‑mounted systems where existing structure is strong and space is limited.
• Choose free‑standing frames for open areas and complex wall profiles.
• Include adjustable sections for advanced training and long‑term flexibility.

11.4 Plan for Future Expansion

• Design supports with clear options for adding new sections, increasing height, or changing angles.
• Leave sufficient clearance for potential additional frames or bouldering islands.
• Use modular components where possible to simplify future upgrades.

12. Frequently Asked Questions About Indoor Climbing Wall Supports

12.1 Can indoor climbing wall supports be installed in small spaces?

Yes. Compact wall‑mounted support systems can fit into small rooms, garages, and corridors. Even in limited spaces,

proper design of the support structure and fall‑zone is essential to ensure safe training and recreational play.

12.2 Are adjustable climbing wall supports suitable for home use?

Adjustable supports are popular for home training walls because they offer multiple difficulty levels in one location.

However, they must be carefully designed and installed so that pivot points, locking mechanisms, and frames can safely

handle repeated loading at various angles.

12.3 How important are anchors in the overall support system?

Anchors are critical because they connect the climbing wall support system to the building structure. Properly selected

and installed anchors ensure that the structural frame and panels remain secure, even under high dynamic loads generated

by falls and powerful moves during both training and recreational use.

12.4 Can existing walls always be used as supports?

Not always. Existing walls must be checked for material strength, thickness, and condition. Some lightweight partition walls,

for example, are not suitable for supporting climbing loads. Where existing walls are inadequate, free‑standing or hybrid

support systems are preferred.

12.5 How often should indoor climbing wall supports be inspected?

Visual inspections should take place regularly, with frequency based on usage intensity. High‑traffic commercial gyms may

inspect supports weekly or monthly, while low‑use home walls might be inspected less often. Periodic professional reviews

help verify long‑term structural integrity.

13. Conclusion

Indoor climbing wall supports are the essential structural foundation for any safe and enjoyable climbing facility.

Whether designed for high‑level training or relaxed recreational play, a well‑engineered support system provides:

• Reliable load‑bearing performance and safety
• Stable, consistent climbing surfaces at a range of angles
• Flexibility to accommodate different user groups and skill levels
• Long‑term durability with manageable maintenance requirements

By carefully considering materials, support types, safety standards, and installation practices, facility owners and

designers can create indoor climbing environments that are structurally secure, highly functional, and perfectly suited

to both training and recreational climbing activities.
